Ingemann Arcus

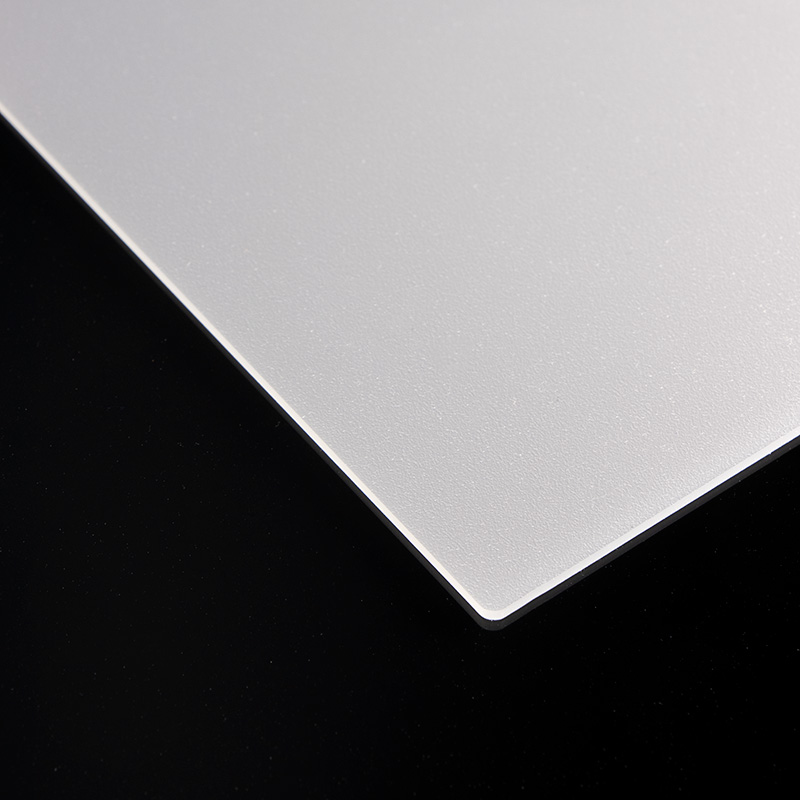

Arcus is a polycarbonate opal diffuser with a dual-sided textured surface – featuring a coarse matte finish on one side and a fine matte finish on the other. Manufactured from optical-grade polycarbonate (PC), it incorporates advanced optical design to deliver a soft, uniform illumination effect, making it ideal for LED panel lights and downlights. Available in 60%, 70%, 80%, and 90% transmission options. Ideal for applications requiring high impact resistance.
For more information, please check the datasheet or contact us.
Advantages
- High light transmission with effective diffusion
- Excellent impact resistance and durability
- UV resistant
- Easy to thermoform, cut, and machine
Product data
| Material | PC |
| Thickness | 1,5 mm to 3 mm |
| Transmittance | 60, 70, 80 & 90 % +/-3% |
| Standard dimensions | 3050 x 1220 mm Custom sizes on request |
| Finish | 2 side matte (Ra 1,5 – 2,5 µm/ Matte 4-5 µm) |
| Haze | 94% – 93.5% ±1 |
| Tensile strength | 60 MPa |
| Temperature range | 0 – 100ºC |
| Flammability | UL94 – V2 |
| Glow wire test | 850ºC ASTM D648 |
