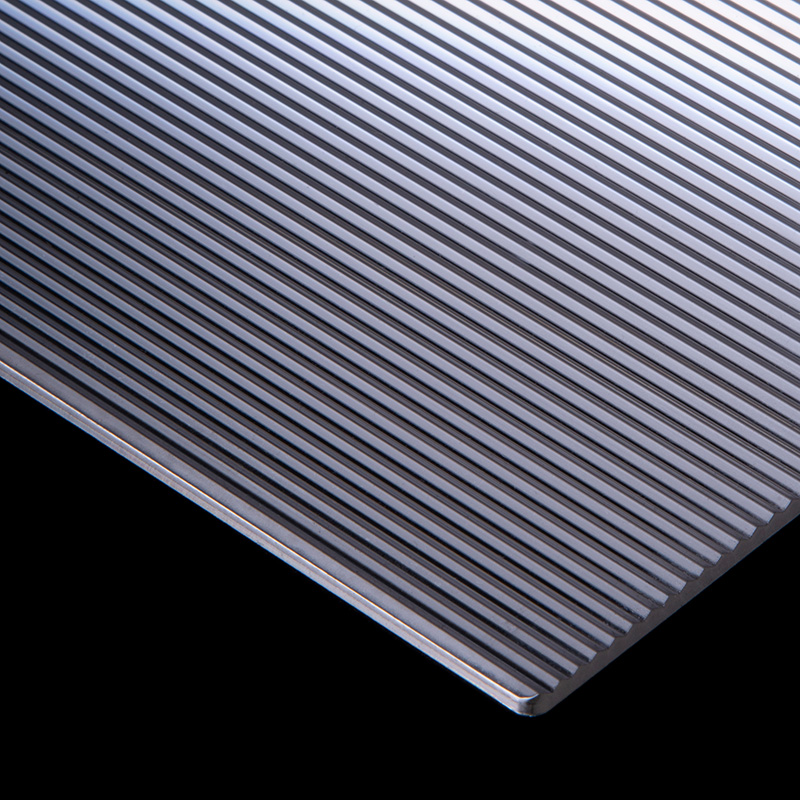

Ingemann Linear Prism
The Ingemann Linear Prism is an excellent choice for
applications where UGR<19 is required. The linear deglaring
structure cuts of the light in the X axis, while maintaining the
luminaires distribution in the Y axis. The linear structure is either
longitudinal or cross directional. This linear sheet is typically
used in narrow light openings with high lumen packages.
The Ingemann Linear Prism is an excellent choice for applications where UGR<19 is required. The linear deglaring structure cuts of the light in the X axis, while maintaining the luminaires distribution in the Y axis. The linear structure is either longitudinal or cross directional. This linear sheet is typically used in narrow light openings with high lumen packages.
For more information, please check the datasheet or contact us.
Advantages
- Efficient linear glare reduction
- High transparency
- Smooth visual appearance
Product data
| Material | PMMA – Clear acrylic |
| Thickness | 2 mm± 0.15 mm |
| Refractive index | 1,491 |
| Transmittance | 94,3% |
| Standard dimensions | 2200 x 1525 mm |
| Temperature range | -40C° to +80C° |
| Glow wire test conducted | Yes |
| Build-up | One-plate solution |
