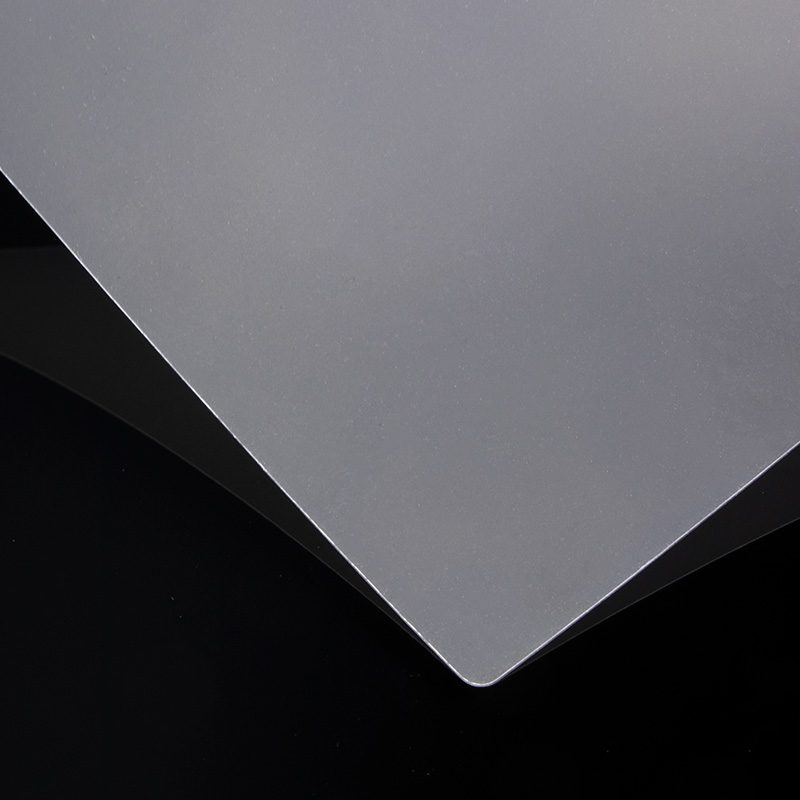

BrightView 2D Batwing

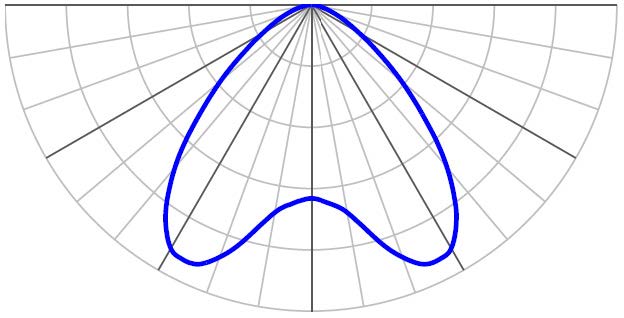

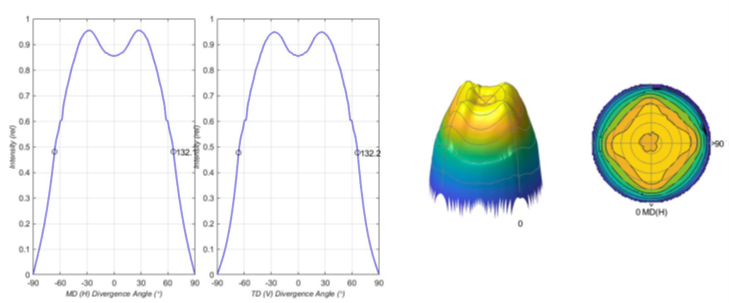

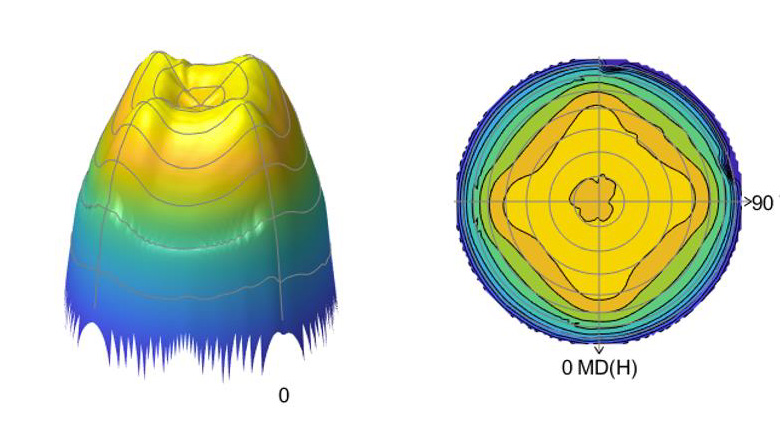

2D Batwing is a light-controlling film from the BrightView. It creates a batwing distribution in two axes perpendicular to each other. By incorporating a special nano-lens design on the film’s surface, a 2D batwing distribution is achieved. These diffusers provide an efficient two-dimensional “batwing” distribution, helping luminaires achieve a flat-field beam profile that uniformly illuminates floors or work surfaces without a central hot spot.
For more information, please check the datasheet, contact us or visit BrightView website.
Advantages
- Excellent lamp hiding
- The 2-plane batwing is excellent to improve homogeneity of illuminated area
- No color shifts
- Great for both direct and indirect lighting
Product data
| Material | PET |
| Thickness | 0,175 mm |
| Standard dimensions | 1830 x 610 mm |
| Spreading angle | 65.1° ±5% / 68° ±5% |
| Efficiency | 95% |
| Flammability UL-94 | Vtm-2 |
