Exolon DX

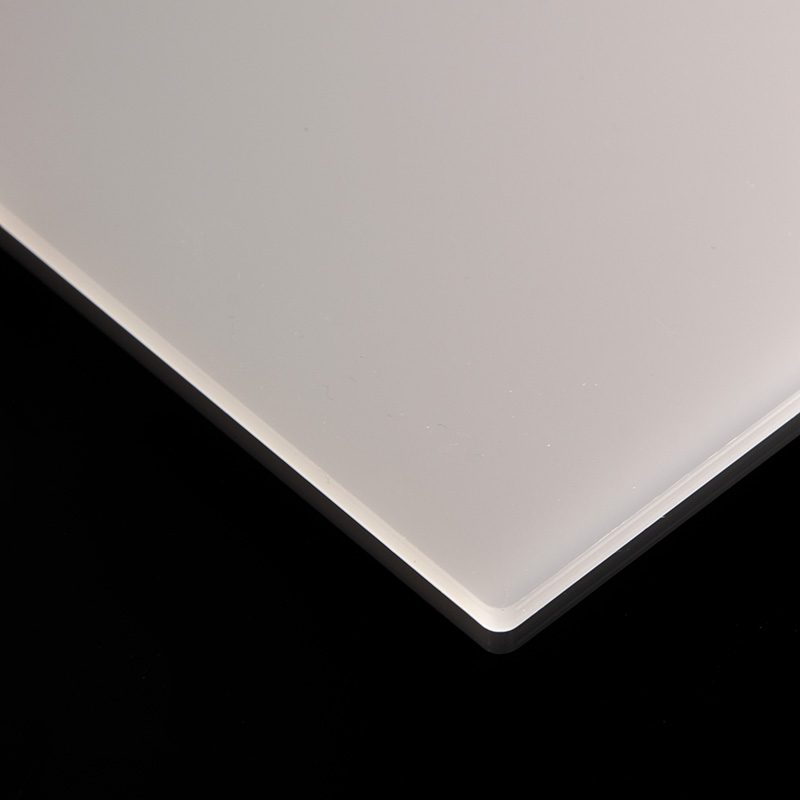

Exolon® DX is a solid polycarbonate diffuser sheet. It is developed for applications based on LED light sources, which do not emit UV light. It combines extremely high light transmission with excellent diffusion and impact resistance. The sheet is suitable for both indoor and outdoor use, with a wide temperature range (−100°C to +120°C) and variants offering different diffusion levels and surface finishes. It is ideal for luminaires, signage, and street furniture.
For more information, please check the datasheet or contact us.
Advantages
- High light transmission with strong diffusion
- Extreme impact resistance
- Wide operating temperature range (−100°C to +120°C)
- Available in multiple finishes and diffusion levels
Product data
| Material | PC |
| Thickness | 1,5 mm | 3,0 mm |
| Transmission D65 | DX Cool: 65% | 64% DX Bright: 74% | 46% DX High: 84% | 84% |
| Standard dimensions | 2050×1250 mm |
| Fire rating | B-s1-d0 V2 | HB |
| Temperature range | -100 C° to +120 C° |
| Tensile Strength | 70 MPa |
| Refractive index | 1.586 |
| Glow wire test conducted | yes |
