AGP

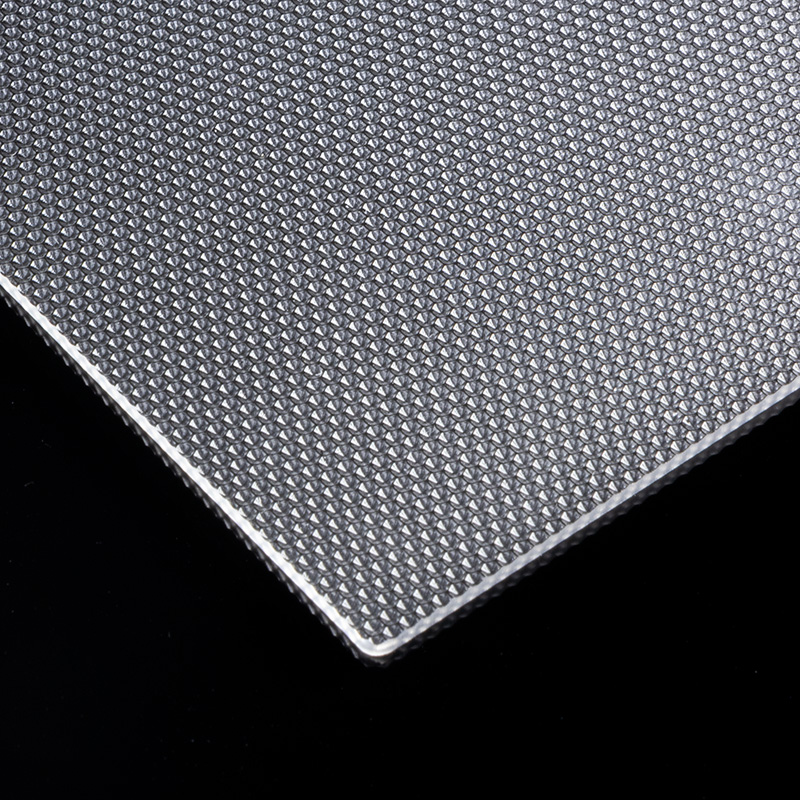

The AGP micro prism provides excellent glare control and is a great choice to achieve UGR <19. It features inverse hexagonal pyramid prisms that ensure high angle brightness control, excellent lamp obscuration, and high transmittance. The prism has a soft cutoff with excellent visual appeal and LED hiding ability. It is appropriate for applications in which high angle brightness cannot be tolerated.
For more information, please check the datasheet or contact us.
Advantages
- Excellent de-glaring
- High transmittance
- High impact resistance
- Flexible dimensions
Product data
| Material | PMMA – Clear acrylic |
| Thickness | 1,5 mm ± 0,1 mm 2 mm ± 0,1 mm 3 mm ±0,1 mm |
| Pyramid width | 1,5 mm |
| Refractive index | 1,491 (PMMA) |
| Transmittance | 92% |
| Standard dimensions | 1200 x 1200 mm 1250 x 1850 mm 1250 x 3050 mm |
| Temperature range | -40°C to +80°C |
| Glow wire test conducted | yes |
| Build-up | One-plate solution |
