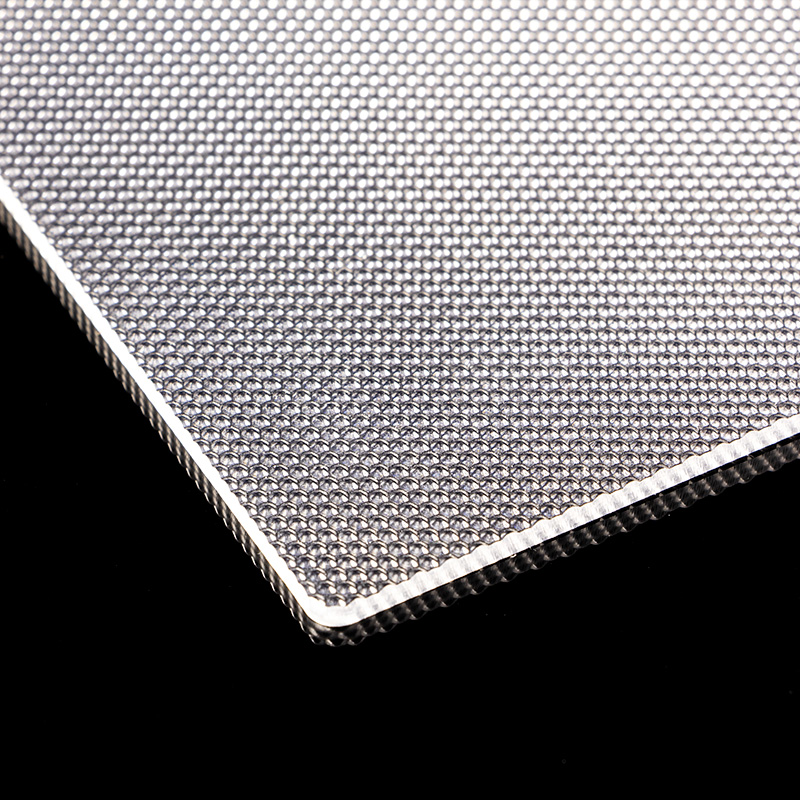

Ingemann Deglaring Prism – PMMA
Ingemann Deglaring Prism, IDP is the latest addition to our deglaring portfolio. This precision optic efficiently lowers UGR for backlit and edge lit luminaires helping you to fulfill EN12464. The prism is produced via extrusion giving a consistent quality and good thickness tolerances. It is available in different thicknesses and sheet sizes up to 3 meter lenghts.
For more information, please check the datasheet or contact us.
Advantages
- Best in class microprism
- 3 meter lengths
- High Light Transmission
Product data
| Material | PMMA |
| Thickness | 1,5 mm, 2 mm, 3 mm (+/-0,1) |
| Transmission D65 | 94% |
| Standard dimensions | 3050 x 1220 mm |
| Flamability grade | HB |
| Vicat Softening Temperature | 107 C° |
| Tensile Strength | 77 MPA |
| Density | 1.19 g/cm3 |
| Operating temperature | -40 to 80 C° |
| Glow wire test conducted | DIN EN 60598-1 |
